ListView

A scrollable list of controls arranged linearly.

ListView is the most commonly used scrolling control. It displays its children one after another in the scroll direction. In the cross axis, the children are required to fill the ListView.

Inherits: LayoutControl, ScrollableControl, AdaptiveControl

Properties

• cache_extent(Number | None) –

  Items that fall in the cache area (before or after the visible area that are about

• clip_behavior(ClipBehavior) –

  How to clip the controls

• controls(list[Control]) –

  A list of Controls to display inside ListView.

• divider_thickness(Number) –

  If greater than 0 then Divider is used as a spacing between list view items.

• first_item_prototype(bool) –

  Whether the dimensions of the first item of controls

• horizontal(bool) –

  Whether to layout the controls horizontally.

• item_extent(Number | None) –

  A fixed height or width (when horizontal is True)

• padding(PaddingValue | None) –

  The amount of space by which to inset the children.

• reverse(bool) –

  Whether the scroll view scrolls in the reading direction.

• semantic_child_count(int | None) –

  The number of children that will contribute semantic information.

• spacing(Number) –

  The height of divider between the controls.

Examples

Live example

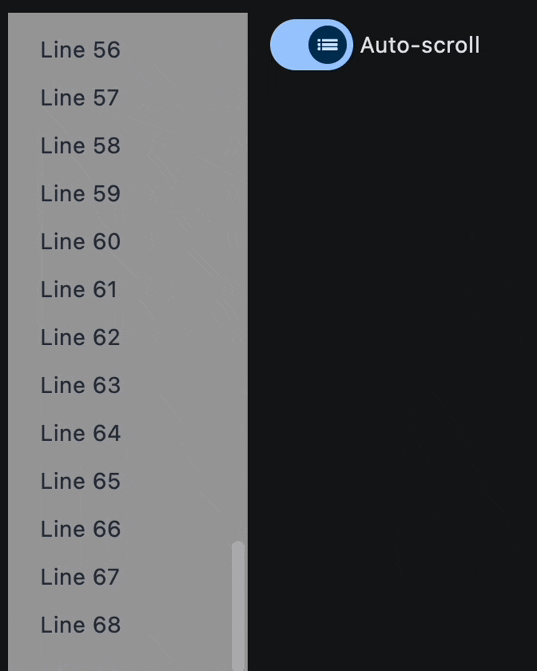

Auto-scrolling and dynamical items addition

import asyncio

import flet as ft


async def main(page: ft.Page):
    def handle_switch_change(e: ft.Event[ft.Switch]):
        lv.auto_scroll = not lv.auto_scroll
        page.update()

    lv = ft.ListView(
        spacing=10,
        padding=20,
        width=150,
        auto_scroll=True,
        controls=[
            ft.Text(f"Line {i}", color=ft.Colors.ON_SECONDARY) for i in range(0, 60)
        ],
    )

    page.add(
        ft.Row(
            expand=True,
            vertical_alignment=ft.CrossAxisAlignment.START,
            controls=[
                ft.Container(
                    content=lv,
                    bgcolor=ft.Colors.GREY_500,
                ),
                ft.Switch(
                    thumb_icon=ft.Icons.LIST_OUTLINED,
                    value=True,
                    label="Auto-scroll",
                    label_position=ft.LabelPosition.RIGHT,
                    on_change=handle_switch_change,
                ),
            ],
        )
    )

    # add a new item to the ListView every 1 second
    for i in range(len(lv.controls), 120):
        await asyncio.sleep(1)
        lv.controls.append(ft.Text(f"Line {i}", color=ft.Colors.ON_SECONDARY))
        page.update()


ft.run(main)

Properties

cache_extent

cache_extent: Number | None = None

Items that fall in the cache area (before or after the visible area that are about to become visible when the user scrolls) are laid out even though they are not yet visible on screen.

The cache_extent describes how many pixels the cache area extends before the leading edge and after the trailing edge of the viewport.

The total extent covered is: cache_extent before + main axis extent + cache_extent after.

clip_behavior

clip_behavior: ClipBehavior = HARD_EDGE

How to clip the controls

controls

controls: list[Control] = field(default_factory=list)

A list of Controls to display inside ListView.

divider_thickness

divider_thickness: Number = 0

If greater than 0 then Divider is used as a spacing between list view items.

first_item_prototype

first_item_prototype: bool = False

Whether the dimensions of the first item of controls should be used as a "prototype" for all other items, i.e. their height or width will be the same as the first item.

horizontal

horizontal: bool = False

Whether to layout the controls horizontally.

item_extent

item_extent: Number | None = None

A fixed height or width (when horizontal is True) of an item to optimize rendering.

padding

padding: PaddingValue | None = None

The amount of space by which to inset the children.

reverse

reverse: bool = False

Whether the scroll view scrolls in the reading direction.

For example, if the reading direction is left-to-right and horizontal is True, then the scroll view scrolls from left to right when reverse is False and from right to left when reverse is True.

Similarly, if horizontal is False, then the scroll view scrolls from top to bottom when reverse is False and from bottom to top when reverse is True.

semantic_child_count

semantic_child_count: int | None = None

The number of children that will contribute semantic information.

spacing

spacing: Number = 0

The height of divider between the controls.
