ProgressBar

A material design linear progress indicator, also known as a progress bar.

A control that shows progress along a line.

Inherits: LayoutControl

Properties

Examples#

Live example

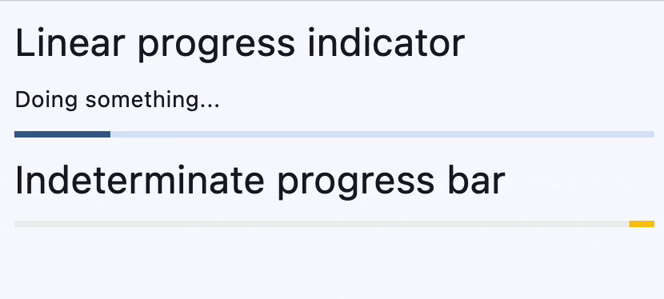

Determinate and indeterminate progress bars#

import asyncio

import flet as ft


async def main(page: ft.Page):
    determinate_bar = ft.ProgressBar(width=400)
    determinate_message = ft.Text("Doing something...")

    page.add(
        ft.Text(
            value="Linear progress indicator",
            theme_style=ft.TextThemeStyle.HEADLINE_SMALL,
        ),
        ft.Column(controls=[determinate_message, determinate_bar]),
        ft.Text(
            value="Indeterminate progress bar",
            theme_style=ft.TextThemeStyle.HEADLINE_SMALL,
        ),
        ft.ProgressBar(width=400, color=ft.Colors.AMBER),
    )

    for i in range(0, 101):
        determinate_bar.value = i * 0.01
        await asyncio.sleep(0.1)
        if i == 100:
            determinate_message.value = "Finished!"
        page.update()


ft.run(main)

determinate-and-indeterminate

Properties#

bar_height #

bar_height: Number | None = None

The minimum height of the line used to draw the linear indicator.

Raises:

bgcolor #

bgcolor: ColorValue | None = None

Color of the track being filled by the linear indicator.

border_radius #

border_radius: BorderRadiusValue | None = None

The border radius of both the indicator and the track.

Defaults to BorderRadius.all(0) - rectangular shape.

color #

color: ColorValue | None = None

The progress indicator's color.

semantics_label #

semantics_label: str | None = None

The semantics label for this progress indicator.

semantics_value #

semantics_value: Number | None = None

The semantics label for this progress indicator.

Raises:

stop_indicator_color #

stop_indicator_color: ColorValue | None = None

The color of the stop indicator.

If ProgressBar.year_2023 is True or Theme.use_material3 is False, then no stop indicator will be drawn.

If not set, then the ProgressIndicatorTheme.stop_indicator_color will be used. If that is not set, then the ColorScheme.primary will be used.

stop_indicator_radius #

stop_indicator_radius: Number | None = None

The radius of the stop indicator.

If ProgressBar.year_2023 is True or Theme.use_material3 is False, then no stop indicator will be drawn.

Set stop_indicator_radius to 0 to hide the stop indicator.

If not set, then the ProgressIndicatorTheme.stop_indicator_radius will be used. If that is not set, then defaults to 2.

track_gap #

track_gap: Number | None = None

The gap between the indicator and the track.

If ProgressBar.year_2023 is True or Theme.use_material3 is False, then no track gap will be drawn.

If not set, then the ProgressIndicatorTheme.track_gap will be used. If that is not set, then defaults to 4.

Tip

Set track_gap to 0 to hide the track gap.

value #

value: Number | None = None

The value of this progress indicator.

A value of 0.0 means no progress and 1.0 means that progress is complete. The value will be clamped to be in the range 0.0 - 1.0.

Defaults to None, meaning that this progress indicator is indeterminate - displays a predetermined animation that does not indicate how much actual progress is being made.

Raises:

year_2023 #

year_2023: bool | None = None

If this is set to False, the ProgressBar will use the latest Material Design 3 appearance, which was introduced in December 2023.

When True, the ProgressBar will use the 2023 Material Design 3 appearance.

If not set, then the ProgressIndicatorTheme.year_2023 will be used, which is False by default.

If Theme.use_material3 is False, then this property is ignored.
